- Crossway CR-451 Electromagnetic Lock with Glass Door Pin
- Low temperature operation, safe and durable electromagnetic lock
- Low power consumption and environmental protection.
- Special photoelectric control
- Long life with 500000 cycles
- Reverse current protection with MOV technology
- Aluminum alloy material with superior strength, Solid stainless steel lock tongue
- Automatic closing Delay Time: 0,3,6,9 sec.
- Door signal output contact (NC-COM)
- Double protection for current loading
- Automatically re-locks if no action is taken within 5 seconds
- CE Certificate

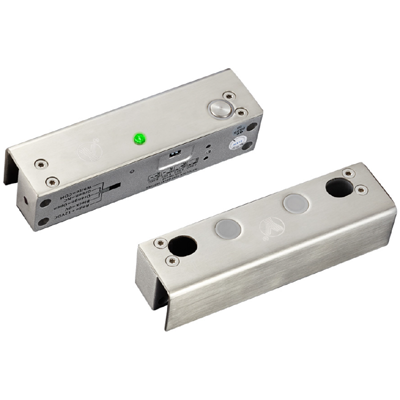

CR-451 Glass Door Pin Electromagnetic Lock
Crossway CR-451 Glass Door Pin Electromagnetic Lock is an all-metal electromagnetic lock designed for completely frameless glass doors. It can be operated in -40/60 degree temperature range. The tongue of the lock is made of 304 stainless steel solid bar with 1000 kg holding force and anti-theft design.
Description
Software Features
Product Features
Lock Dimensions: 150Lx40WX37H(mm)
Lock Striker Dimensions: 16(length)*13(diameter)(mm)
Voltage DC12V(DC24V)
Solid Bolt: polishing housing, 1000kg Holding Force
Suitability: Full doors without frames
Signal Output NC/COM
LED: Light on indicates locked, light off indicates unlocked
Surface Temperature Low Temperature
Induction distance 8mm
Main Material: Stainless Steel
Weight 1.36kg
Hardware Features
