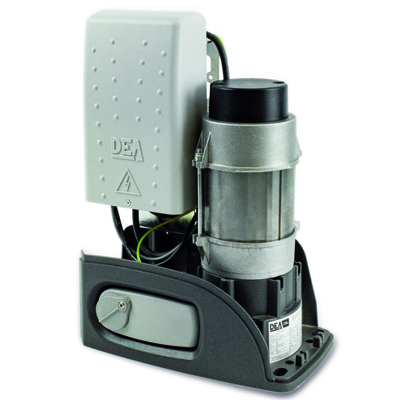

LIVI 603 KIT

DEA Liv series door motors are designed to add elegance and functionality to modern buildings and structures. Livs series motors, which adapt to all types of buildings with their durable and aesthetic designs, have the capacity to lift door weights up to 900 kg.

SKU: LIVI 603 Category:
Description

LIVI 603 KIT

  • Made of high quality materials such as steel and bronze for many years of safe use
  • No more open doors in case of power outages with a special battery kit (Optional and only for 24 V models)
  • External cable compatible release (450 N and BLINDOS – Optional), secure access to your property from outside at all times
  • The control panel is positioned at the front on top. Always accessible and perfect for small or narrow spaces
  • Fast assembly with invisible plate and screw bar fixing system
Software Features

Motor Power Supply (V): 230 V

Maximum Power Absorption (W): 320 W

Maximum Thrust Force (N): 340 N

Cycle/Hour: 18

Operation Continuity Times/Hour: 60

Operating Temperature (°C): (-20°C)-(50°C)

Speed (m/min): 10

Internal Capacitor(uF): 8 uF

Motor Thermal Protection (°C): 140 °C

Weight with Packaging (KG): 11 KG

Sound Level dBA: <70

Protection Level: IPX4 (IP44: for swich models with magnetic contacts)

  • Speed adjustment and on-off deceleration adjustment
  • Anti-collision function
Hardware Features

LIVI 603 KIT

  • LIVI 403 N (212E)
  • 600 KG
  • 230V
  • 2x CONTROLLER
  • 1 FLASHER
  • 1 TK PHOTOSEL
  • 4M KREMAYER
User Manual
