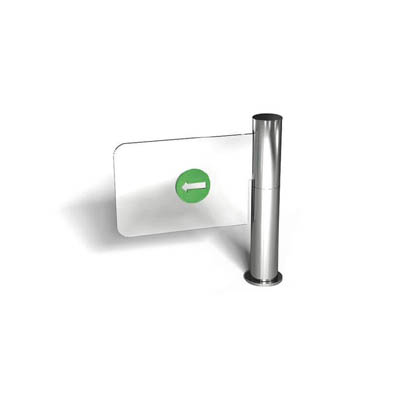

SG-WMC Swing Gate Turnstile

It is designed for use in personnel, disabled and material transitions. When desired, “stop”, “pass” and “disabled” signs can be added on the plexiglass or glass wing.

SKU: SG-WMC Categories: ,
Description

Motorized handrails operate with 220 Vac. The internal voltage is 24 Vdc. To open the handrail, it is sufficient to use any access control product that can give dry contact. After that, it opens automatically thanks to the SG WMC motor.

Thanks to the electronic card inside the turnstile, it automatically closes and locks itself after an adjustable period of time. If a person or object gets in the way during closing and opening, it does not harm the person or object in the way, it pushes and slides with a certain force thanks to the motor clutch.

Software Features
Hardware Features

Operation: Motorized wing moving in both directions.

Case 2 pieces of 2 mm thick polished bright AISI 304 quality stainless steel.

Wing 10 mm thick plexiglass. Led lighting. Optional: Tempered Glass (60-70 cm).

Functions: Automatic shutdown. service mode. soft stop capability at locking points. Voice warning.

Mechanism: Fail safe (arms free in case of power failure).

Emergency Mode: In case of emergency, it switches to “emergency mode” with the signal from the manual button or fire alarm system and the sash opens automatically in the desired direction.

Operating Voltage: 100-230 VAC. 47-60 Hz

Power Consumption: 22W in transitions. 9W in standby.

Operating Temperature: 0° / +70°

Opening – Closing Speed: ~1.5 sec.

Transition Range: 60-90 cm

Weight: ~40 kg

Areas of Use: Suitable for indoor use.

Accessories: Remote Control Unit. 2 Button Control Unit. Stainless Steel Reader Stand. Reflective Photocell and Mounting Foot. Counter. Stainless Steel Reader Apparatus. Stainless Steel Bottom Plate. Logo engraving on wing
